Description
Receiving frequency: 40CH (5645MHz to 5945MHz)
Input voltage：DC 5V
Current consumption: (380±40) mA@5V
RX Sensitivity: -90dBm
Voltage Standing Wave Ratio: 2:1
IF: 480MHz
Demodulation System: FM/PLL
ANT. input impedance: 50Ω, Typ.
Video Output impedance: 75Ω, Typ.
Audio Ouput Frequency Range: 100Hz-20000Hz
RF Connector: SMA
Weight: 15.4g ( w/o antanna)

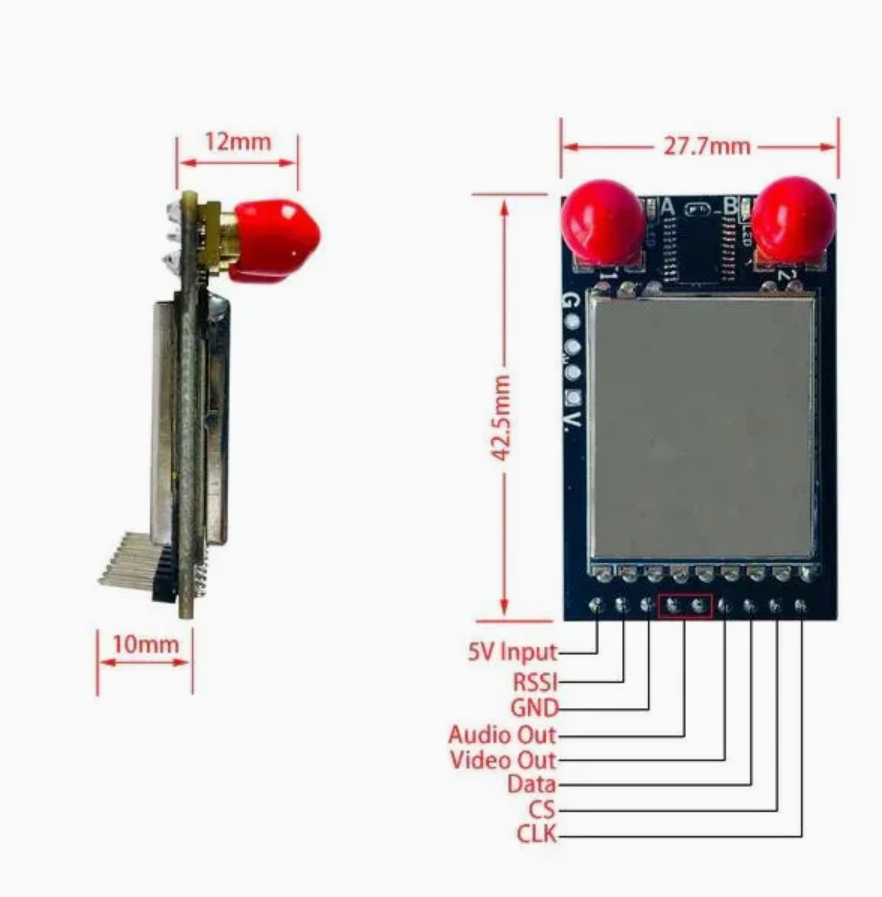

Size: board 42.5mm (L)*27.7mm (W)*20mm (H)
