Description

Product Description:

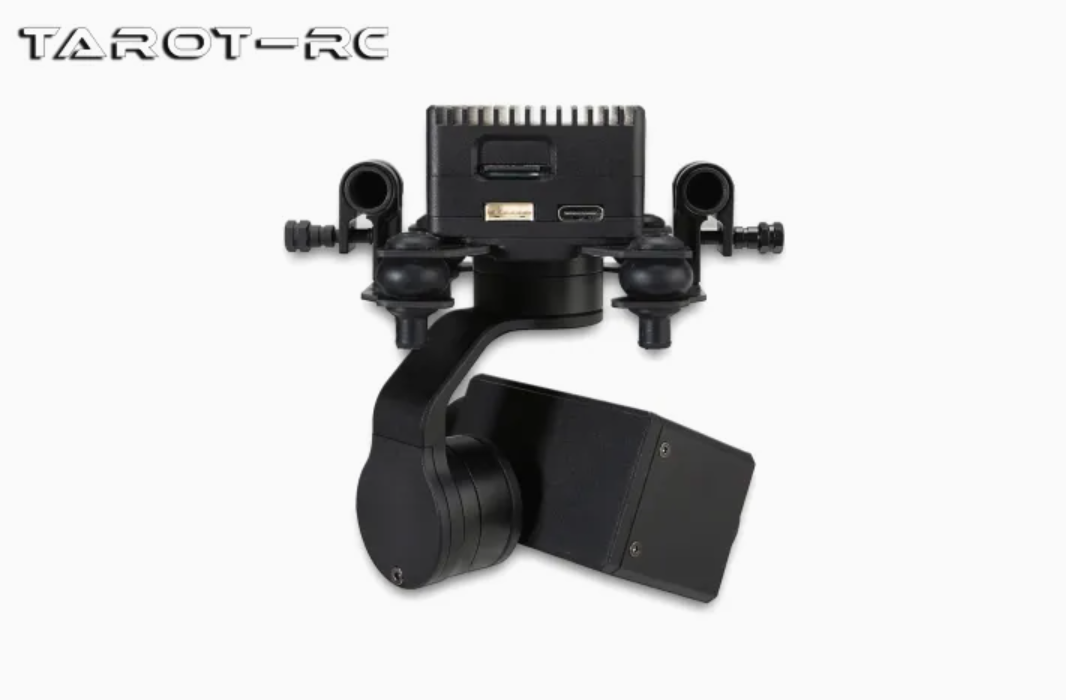

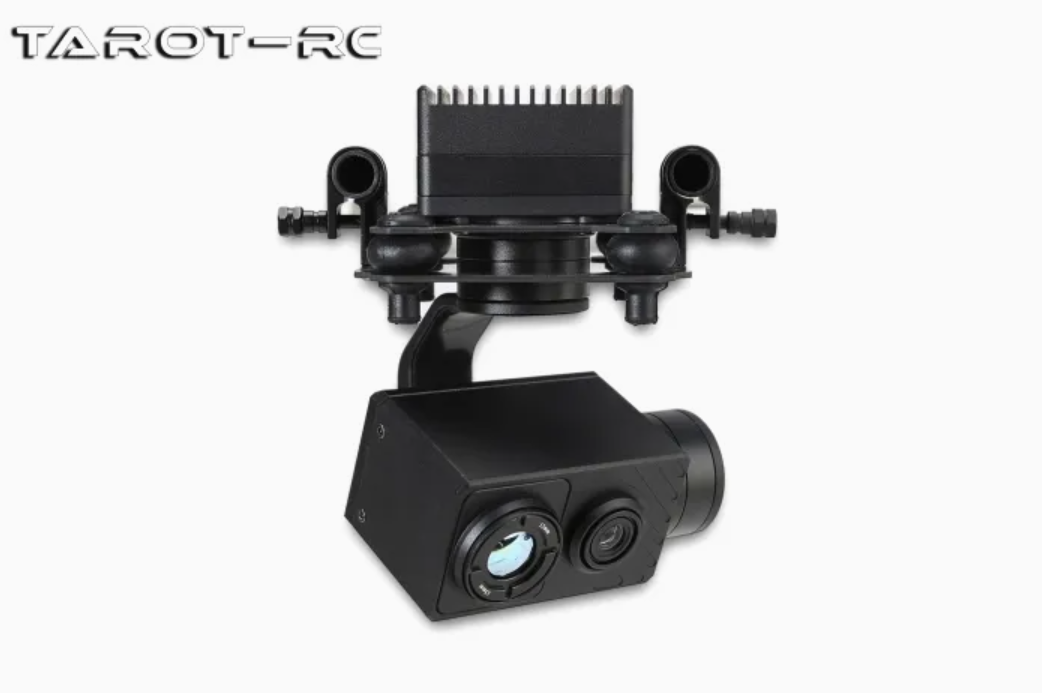

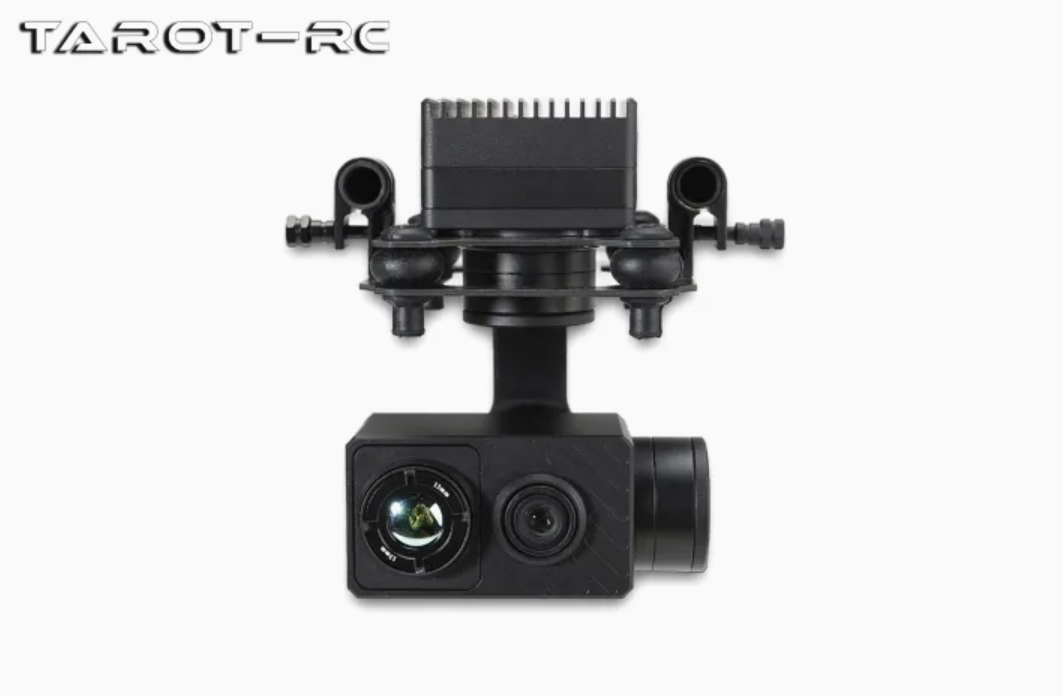

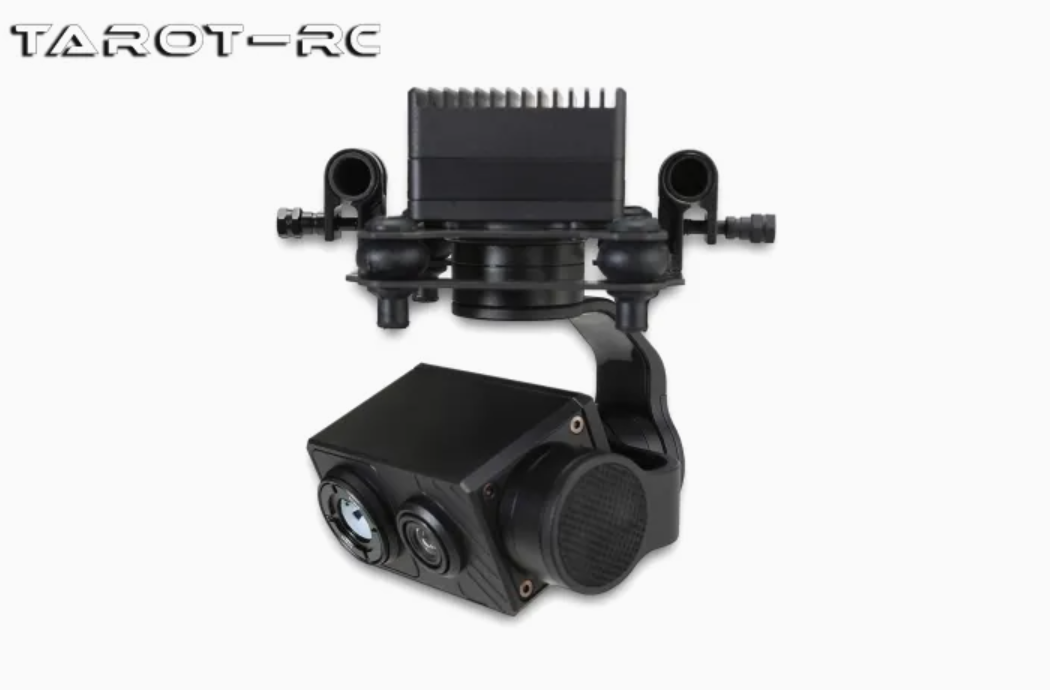

·Tarot TL3T31 is a lightweight professional 3-axis dual-sensor gimbal for power inspection, firefighting and many other industries;
·It has a built-in independent IMU to precisely control the gimbal’s attitude, integrates a dedicated servo drive module for the gimbal, and supports two working modes: Yaw follow and Yaw lock;
·Equipped with professional grade 640 thermal imaging and 1080P visible light camera;
·It can be widely used in fire fighting, forest public security, public security monitoring, search and rescue, environmental protection law enforcement and other industries.

Product Features:
1.Gimbal supports wide voltage DC 13-60V input;
2.Mechanical three-axis image stabilization, ± 0.01 ° image stabilization accuracy;
3.Aluminum alloy structure design, lightweight and sturdy, good heat dissipation performance;
4.Highly optimized servo motor vector control algorithm;
5.Real three-axis (Yaw axis, Pitch axis, Roll axis) independent control;
6.The Pitch axis and Yaw axis support angle mode and rate mode control;

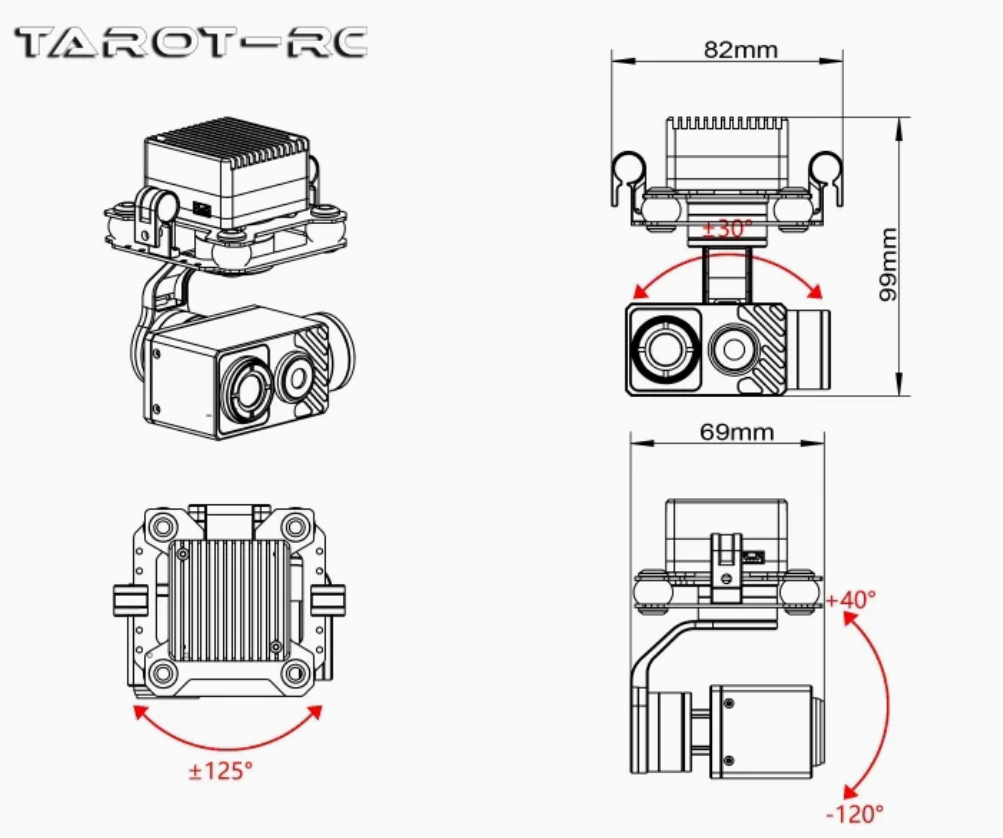

7.Yaw axis direction controllable angle (Yaw): ±125 °;
8.Pitch axis direction controllable angle (Pitch): -120 ° to +40 °;
9.Roll axis direction controllable angle (Roll): ±30°;
10. Support One Click Down 90° downward looking and Back to center operation;
11. Support S.Bus control, four-way PWM output control, serial UART control;
12. Network standard RTSP video output mode;

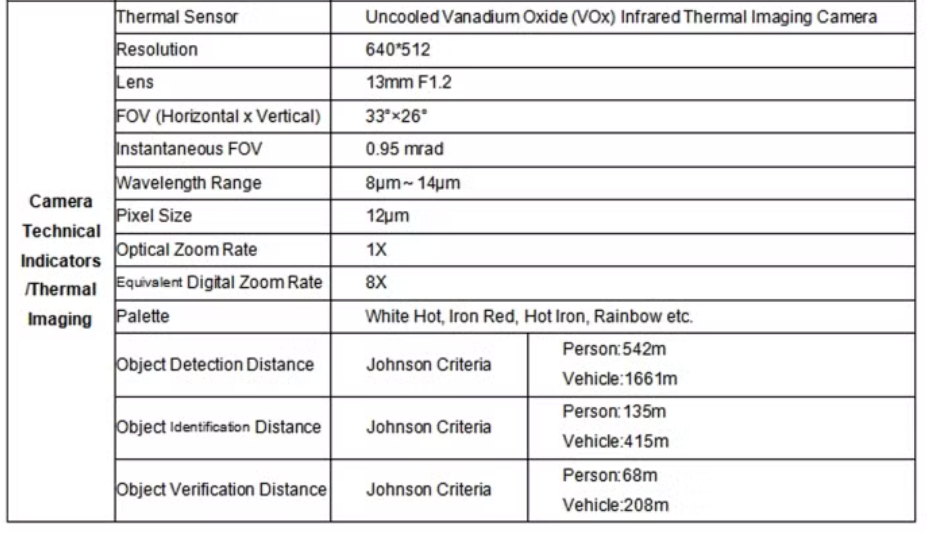

13. Movement thermal imaging output resolution 640 * 512, visible light output 1920 * 1080;

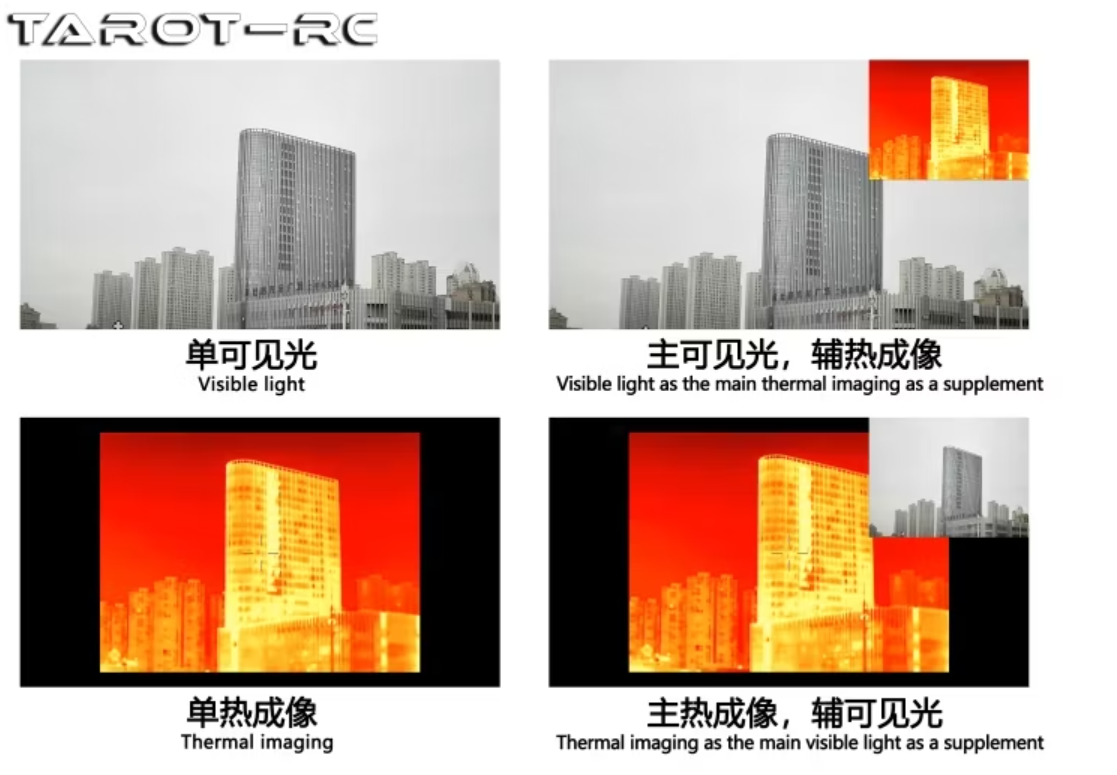

14. Support for visible light, thermal imaging of the four PIP switching video output display;

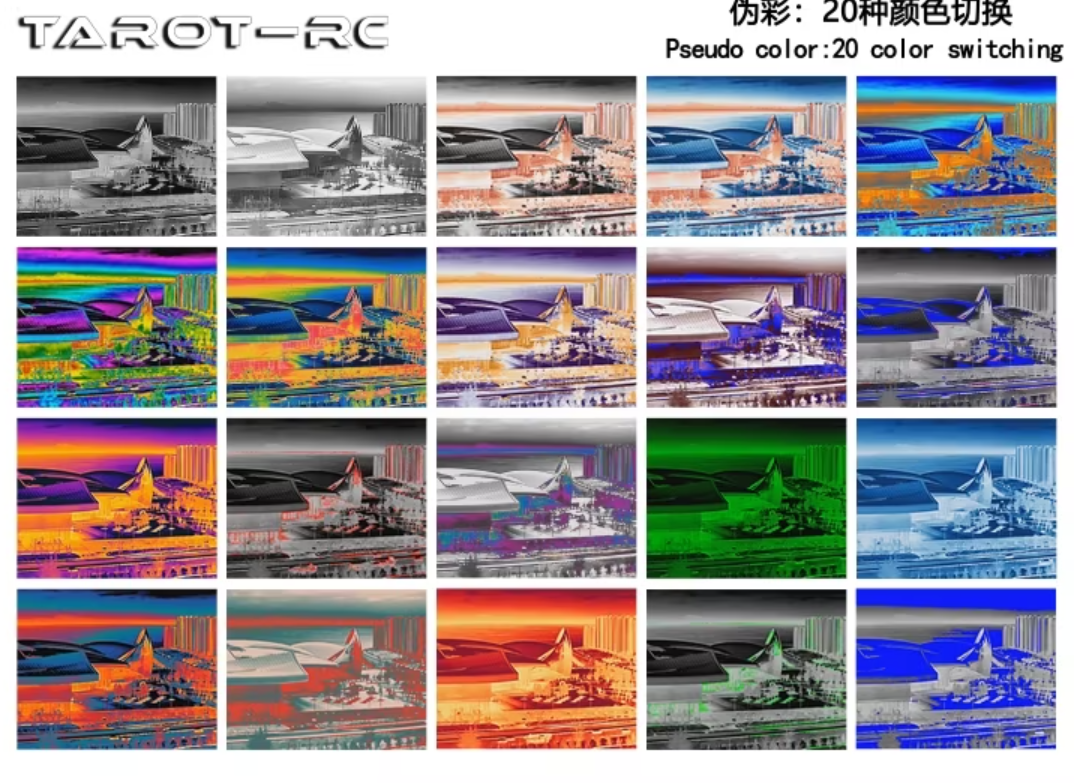

15. Thermal imaging support 20 kinds of pseudo-color output mode;
16. Support downloading photos and video files online;

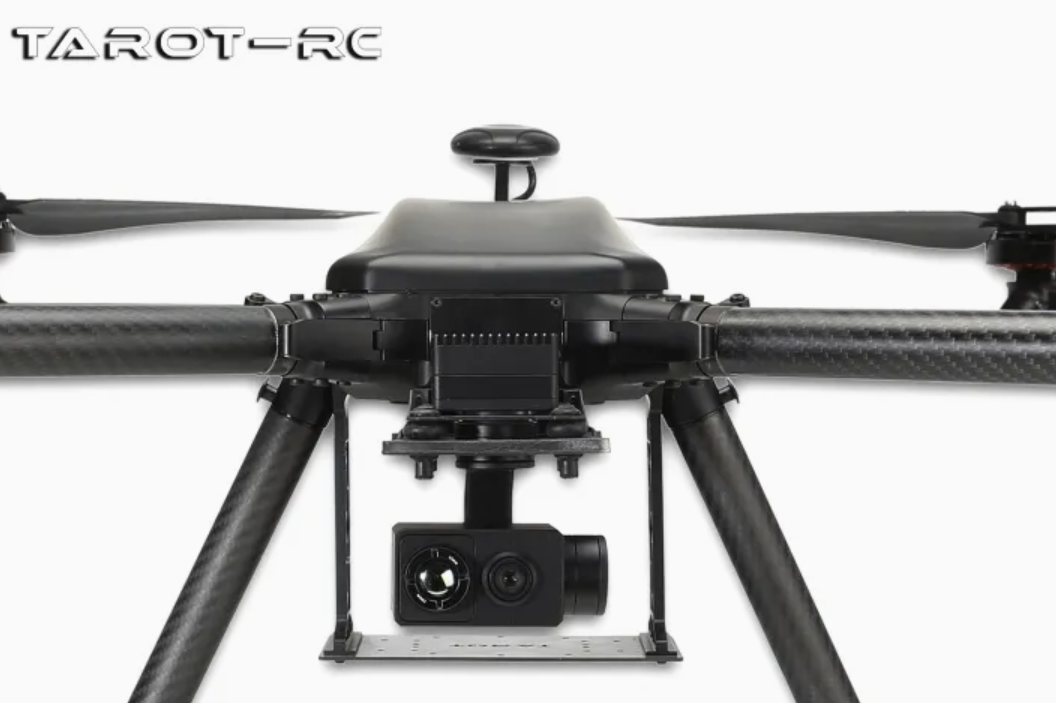

17.Support Upright/Inverted installation use
18. Weight only 225g.

Packing List:
TL3T21 gimbal ×1
Accessory Cable kit ×1
